B-G - Embossed Aluminium Heat Barrier Shield

B-G - Embossed Aluminium Heat Barrier Shield

£12.99

Brand: B-G

Product Code: BG5311

The B-G Embossed Aluminium Heat Shield is an ideal choice of underbody heat management material due to its highly reflective, low emissive, and highly corrosion resistant nature. The aluminium sheet is easy to trim, fold and form and keeps its shape thanks to the embossed surface providing rigidity in all directions, despite its 0.

Sheet Size

Add to Wishlist Add to Compare

Description

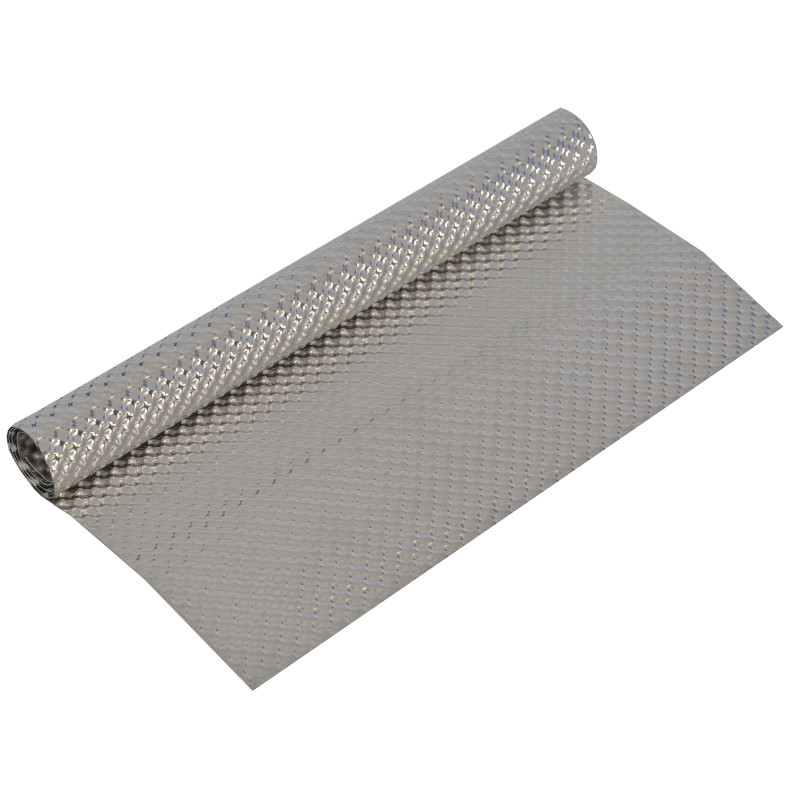

The B-G Embossed Aluminium Heat Shield is an ideal choice of underbody heat management material due to its highly reflective, low emissive, and highly corrosion resistant nature.

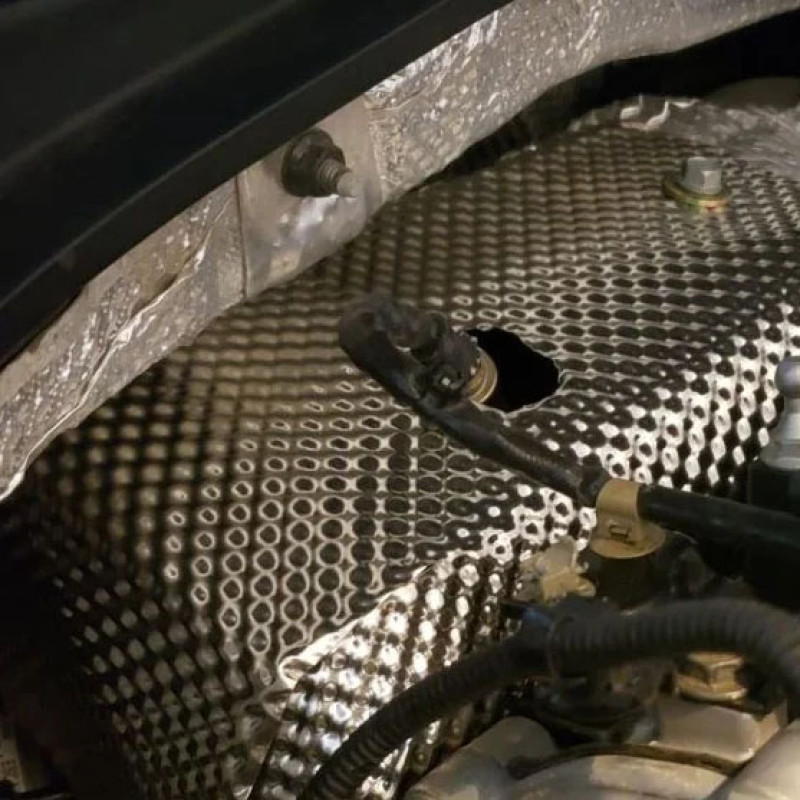

The aluminium sheet is easy to trim, fold and form and keeps its shape thanks to the embossed surface providing rigidity in all directions, despite its 0.2mm overall thickness, and it is perfect for a range of applications including engine bays, gearbox tunnels, firewalls, bulkheads and more.

The heat barrier shield is effective against radiant heat of up to 1090°C (2000°F) and direct contact of up to 590°C (1100°F), and it is available in sheet sizes of 300mm x 500mm (11.75” x 19.5”), 500mm x 500mm (19.5” x 19.5”) or 1000mm x 1000mm (39.3" x 39.3").

Dimensions may vary due to manufacturing tolerances.

Specification

Part Number BG5311: 300mm x 500mm (11.75” x 19.5”) / BG5312: 500mm x 500mm (19.5” x 19.5”) / BG5313: 1M x 1M (39.3” x 39.3”)

Thickness 0.2mm – 0.007”

Brand B-G

Material Aluminium

Colour Silver

Finish Embossed

Width BG5311: 300mm – 11.75” / BG5312: 500mm – 19.5” / BG5313: 1000mm – 39.3”

Length BG5311: 500mm – 19.5” / BG5312: 500mm – 19.5” / BG5313: 1000mm – 39.3”

Operating Temperature Range Radiant: 1090°C (2000°F) / Direct Contact: 590°C (1100°F)

Nett Weight BG5311: 100g – 0.22lb / BG5312: 140g – 0.31lb / BG5313: 700g – 1.54lb

Warranty This product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. This guarantee is invalid if the product is found to have been abused or tampered with in any way, or not used for the purpose for which it was intended. Faulty goods should be returned to their place of purchase, no product can be returned to us without prior permission. This guarantee does not affect your statutory rights.
